6V - 12V Converter Circuit

6V - 12V Converter Circuit

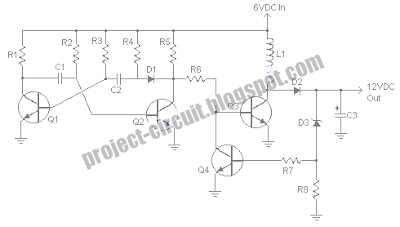

This circuit is an inverter actually. This circuit is not converter, but it is say as converter cause convert voltage from low to high. This inverter circuit can provide up to 800mA of 12V power from a 6V supply. For example, you could run 12V car accessories in a 6V of the car. The circuit is simple, about 75% efficient and quite useful. This is the figure of the circuit.


This circuit is work based on transistor. L1 is a custom inductor wound with about 80 turns of 0.5mm magnet wire around a toroidal core with a 40mm outside diameter. Different values of D3 can be used to get different output voltages from about 0.6V to around 30V. Note that at higher voltages the circuit might not perform as well and may not produce as much current. You may also need to use a larger C3 for higher voltages and/or higher currents. You can use a larger value for C3 to provide better filtering. The circuit will require about 2A from the 6V supply to provide the full 800mA at 12V.

Part:
R1, R4 2.2K 1/4W Resistor
R2, R3 4.7K 1/4W Resistor
R5 1K 1/4W Resistor
R6 1.5K 1/4W Resistor
R7 33K 1/4W Resistor
R8 10K 1/4W Resistor
C1,C2 0.1uF Ceramic Disc Capacitor
C3 470uF 25V Electrolytic Capcitor
D1 1N914 Diode
D2 1N4004 Diode
D3 12V 400mW Zener Diode
Q1, Q2, Q4 BC547 NPN Transistor
Q3 BD679 NPN Transistor
L1 See Notes MISC1Heatsink for Q3, Binding Posts (for Input / Output), Wire, Board
